| 產地 | 江蘇 |
|---|---|
| 電源電壓 | 380V |
| 結構類型 | 渦旋式 |
| 類型 | 水冷式冷水機 |
| 外形尺寸 | 1300mm*610mm*1445mm |
| 銷售方式 | 直銷 |
| 應用領域 | 電鍍,食品,建筑,化工,工業,反應釜 |
| 整機功率 | 8.5KW |
| 整機重量 | 290kg |
| 制冷量 | 32.2KW |
| 執行質量標準 | 國標 |
| 貿易屬性 | 外貿+內貿 |
| 發貨期限 | 15天 |
| 品牌 | 攜爾德 |
| 型號 | XED-10WD |
| 加工定制 | 是 |
| 出水溫度范圍 | 5℃/+45℃ |
1、產品概述：
1、product overview

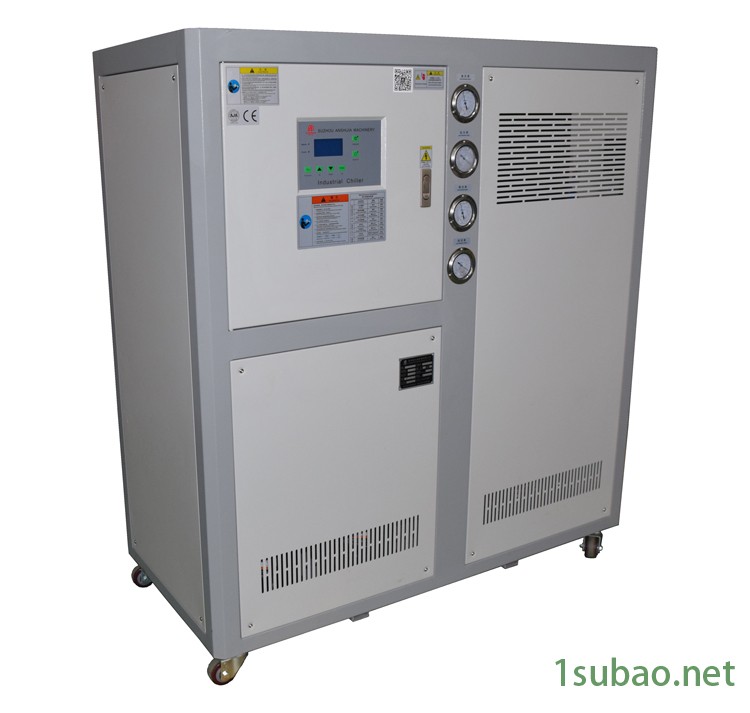

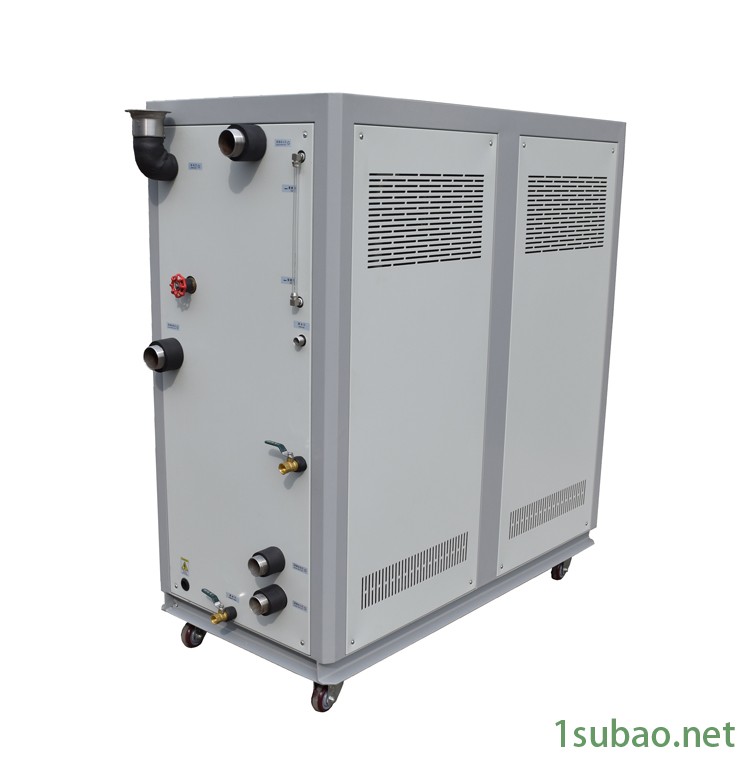

30KW水冷式冷水機組擁有2個全封閉渦旋壓縮機，水冷式冷水機組外部必須配有冷卻塔和水泵，用以抽取熱水進行散熱，使制冷過程能夠循環進行。優點：結構簡單，散熱效果好，噪音小，同等大小制冷量能效比高于風冷式冷水機組。缺點：外部需配水塔和水池，不便移動。
The 30KW water-cooled chiller has two totally enclosed scroll compressors. The external of the water-cooled chiller must be equipped with cooling tower and water pump to extract hot water for cooling, so that the cooling process can be repeated.Advantages: simple structure, good heat dissipation effect, small noise, the same size cooling capacity energy efficiency ratio is higher than the air-cooled chiller.Disadvantages: external water distribution tower and pool, inconvenient to move.
2、產品參數：
2、Product Parameter
|
| XED-10WD | |
| Freezing capability | Kcal / KW | 27370 / 32.2 |
| Power source | V | 3∮ 380～380V- 50HZ（440V-60HZ，Can be customized） |
| Motor ipupt | KW | 8.42 |
| Electric current | A | 21.05 |
| Refrigerant | Kind | R407C、R404A、R134A（Can be customized） |
| FILLING QUANTIT（kg） | 5.6 | |
| Power of compressor | KW | 3.46*2 |
| Quantity of compressor |
| 2 |
| Cooling water flow rate m3/h | m3/h | 8.2 |
| Cooling water inlet and outlet pipe diameter | MM | 50 |
| Power of water pump | KW | 0.75 |
| Refrigerated water flow | m3/hr | 6 |
| Diameter of freezing water pipe | MM | 50 |
| Overall dimension | L（mm） | 1300 |
| W（mm） | 610 | |
| H（mm） | 1445 | |
| Weight of machine | kg | 290 |
3、產品細節描述
30KW水冷式冷水機組內部包含SUS304不銹鋼保溫水箱，水箱容積188L，適用于醫療設備冷卻，注塑機冷卻，模具冷卻，30KW水冷式冷水機需要外接一臺10T的冷卻水塔，配一臺流量不低于8m3/h的水泵。
3. Product deion
The 30KW water-cooled chiller contains a SUS304 stainless steel insulated water tank with a volume of 188L, which is suitable for medical equipment cooling, injection molding machine cooling and mold cooling. The 30KW water-cooled chiller needs an external 10T cooling water tower and a water pump with a flow rate of no less than 8m /h.
4、FAQ
問：這款機器有腳輪可以移動嗎？
答：有輪子可以移動，隨時可以推著走。
Q: does the machine have casters that can be moved?
Answer: have wheel can move, can push to walk at any time.
5、選型參數表
