| 包裝材料 | 紙類 |
|---|---|
| 功率 | 15 |
| 規格 | 1100*800*1420 |
| 生產速度 | 0-30 |
| 適用對象 | 臥式酒盒機 |
| 適用原料 | PE |
| 售后服務 | 保修一年 |
| 適用行業 | 服裝,家紡,玩具,**,禮品、工藝品 |
| 包裝類型 | 盒 |
| 最大成型面積 | 180*180 |
| 品牌 | 德高機械 |

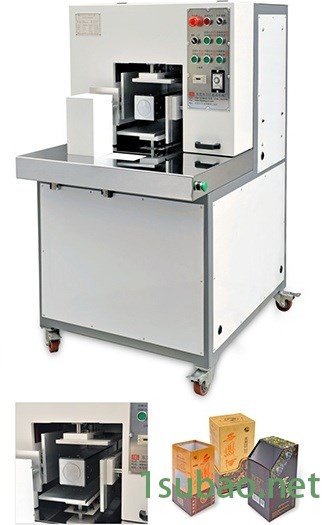

| 型號 | DG-800臥式酒盒機 全自動貼角機 |
| 加工定制 | 否 |
| 最大成型高度 | 325 |
加厚機架與底板，精密加工組裝，四面壓合八柱導桿，使盒體全面均衡受力。
盒頂壓緊座采用直徑40硬鉻軸為導向，滑動順暢，位置精準，牢固耐用。
模芯設計為四面同時漲大結構，漲出力量對稱，尺寸精準，漲大后內滑條處于臺階平位可以完全承受四面壓力，不會讓盒體有絲毫變形塌陷，漲大尺寸為單面2.5MM共5MM，方便紙盒的套入與取出，并有自動退盒功能，操作方便快捷。
100MM-180MM寬*200MM-320MM高尺寸以內的酒盒免換外模板，尺寸可調。
控制電路設計有調機、工作、手動、腳踏狀態，每組氣缸可單獨啟動，壓盒延遲等。
電器、氣動元件均選用知名品牌，反應靈敏、性能穩定。
整機粉體金屬烤漆，不銹鋼臺面外形美觀。
動作設計連貫合理，生產效率高，是酒盒生產廠家的首選設備。
The machine applies thickening frame and bottomplate and precision machining assembly. Eight-column guide rod is pressed forall sides. So the box can bear balanced stress comprehensively.
Hard chrome shaft with diameter of 40 is adopted forcompressing base of top box so as to achieve smooth sliding, accurate positionand firm and durable property.
The design of mould core applies rising structure offour sides at the same time. Rising strength is symmetrical and the size isaccurate. After rising, internal slider is at a flat position of step. Themachine can bear pressure of four sides completely and it will neither make thebox produce any deformation nor collapse. The rising size is 2.5MM of cartonare convenient. Besides, the machine has automatic returning box function. Theoperation is convenient and fast.
The external formwork of wine box with width of100MM-180MM*height of 200MM-320MM cannot be changed. The size can be adjusted.
The design of control circuit includes debuggingmachine. Working, manual and pedal status. Each group of cylinders can bestarted. Box pressing is delayed.
Electrical apparatus and pneumatic components areall selected from famous brand, so reaction is sensitive and performance isstable.
The whole machine applies powder metal bakingvarnish.
The action design id coherent and reasonable. Theproduction efficiency is high. Thus, the
Machine is the preferred for wine boxmanufacturer.
| 基本參數 | |
| 外形尺寸 | 1100*800*1420mm |
| 機器凈重 | 約320KG |
| 電源電壓 | 單項-220V |
| 使用氣壓 | 0.6-0.8Mpa |
| 功率 | 15W |
| 盒周壓力 | 260-320kg |
| 盒地壓力 | 160-200kg |
| 總排氣量 | 0.95㎡/min |
| 最大尺寸 | 180*180*325mm |
