焊管模具-Pipe Mould Tube Roller Die
圓形/方形/矩形/異形等不銹鋼/銅/碳鋼/鐵/鍍鋅等金屬焊管模具軋輥
Round/Square/Rectangle/Special-Shaped Etc Stainless Steel/Copper/Carbon Steel/Iron/Galvanized Etc metal Steel TUBE MOLD PIPE ROLLER MOULD DIE
焊管模具是制造金屬直縫焊管的必要五金配件。鋼卷在焊管模具的外力作用下，在模具弧形中逐漸被迫冷軋卷曲成型，而后經過焊接，從而得到封閉的焊管。模具可以根據客戶需求進行設計，如圓形、橢圓、方形、矩形、異形等，焊管模具被廣泛應用于裝飾類管材、工業類管、ERW焊管等管材的生產。
模具材質：Cr12MoV/SKD11/D2/Cu-Cr合金/Cr12等
管形：圓形/方形/矩形/異形等
硬度：HRC58-63
特點：相對標準管形，幾乎無拉傷，使用壽命相對長等
Welded pipe mould tube roller die is a necessary hardware accessory for manufacturing metal straight seam welded pipe. Under the bbbbbb of the external force of the welded pipe mould, the steel coil is gradually forced to be cold rolled and curled in the arc of the tube roller, and then welded to obtain the closed welded pipe. The mold can be designed according to the customer's needs, such as round, elliptical, square, rectangular, special-shaped pipes, etc. the welded pipe mold is widely used in the production of decorative pipes, industrial pipes, ERW welded pipes and other pipes.
MOULD ROLLER MATERIAL:Cr12MoV / SKD11 / D2 / Cu-Cr Alloy / Cr12 Etc
PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc
HARDNESS:HRC 58—63
Features: Standard tube shape, No Scratch, Long service life
生產工藝/Production Process
型號參數/Model & Parameter
| 管形 Tube shape | 管徑范圍 Caliber range(mm) | 壁厚范圍Wall thickness(mm) | 硬度 Hardness | 熱處理 Heat treatment | 材料 Material |
| 圓形 Round
| ?5—325 |
0.2—10 | HRC
58—63 | Vacuum / Nitriding / Cryogenic Etc | Cr12MoV SKD11 D2 Cu-Cr Alloy Cr12 Etc |
| 方形 Square | 5*5—250*250 | 0.3—8 | |||
| 矩形 Rectangle
| 5*10—200*300 | 0.3—8 |

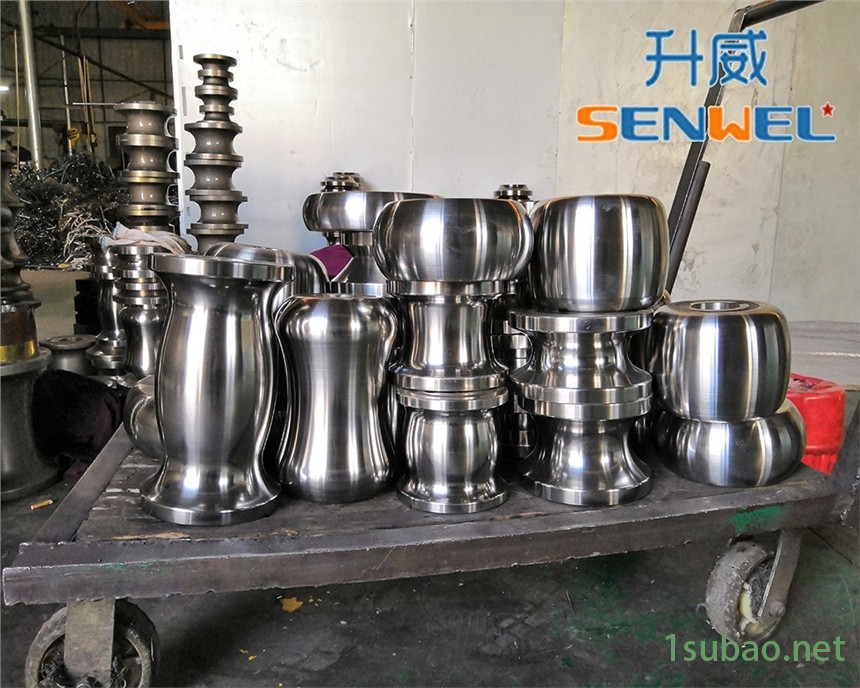

細節展示/Detail
制造工藝/manufacturing process Display
圖紙?jiān)O(shè)計—坯件鑄造—粗加工—CNC精加工—箱體加工—龍門銑床加工—部件組裝—機臺組裝—機組調試—包裝—裝車—安裝調試培訓
Design——Blank casting——Rough machining——CNC finish machining——Box processing——CNC Planer Mille processing——Parts assembly——Machine assembly——Debugging & testing——Packing——transport—— Installation and commissioning training
質量=設計+技術+經驗+材料+設備
Quality = Design + Technology + Experience + Materials + Equipment
