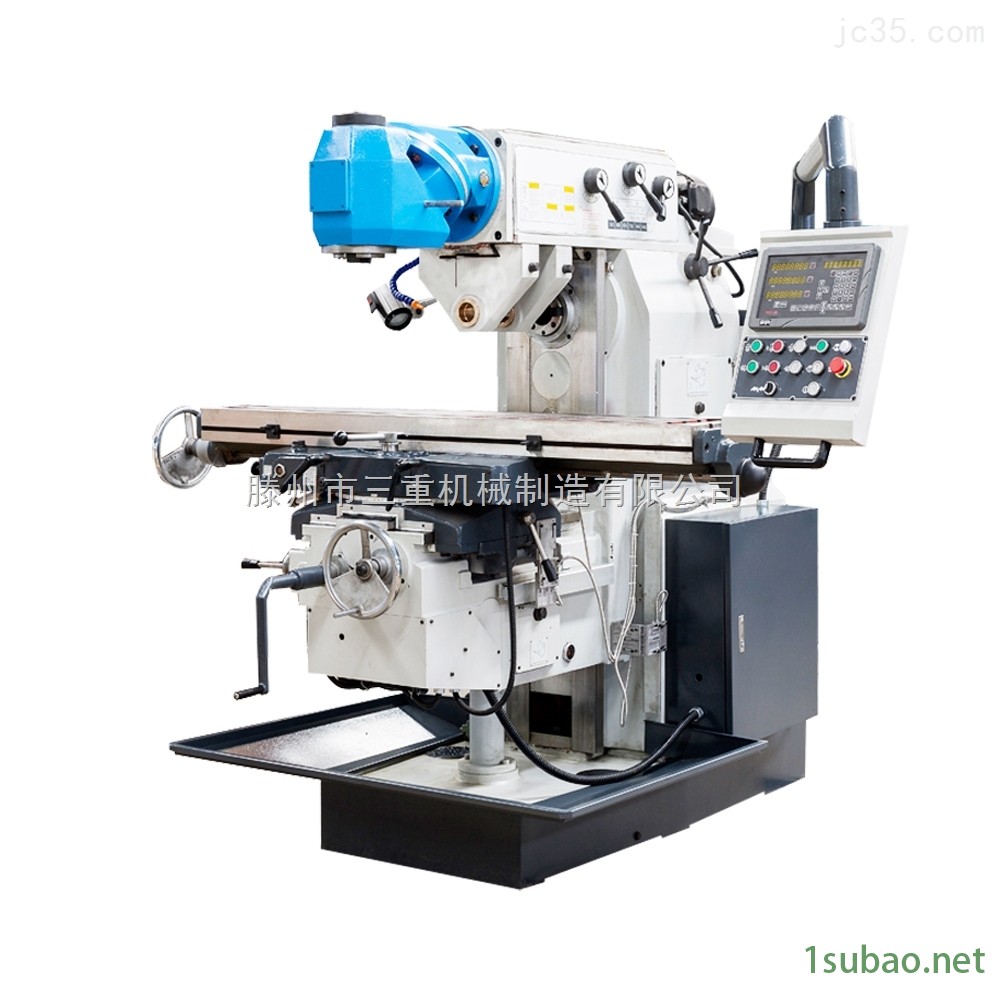

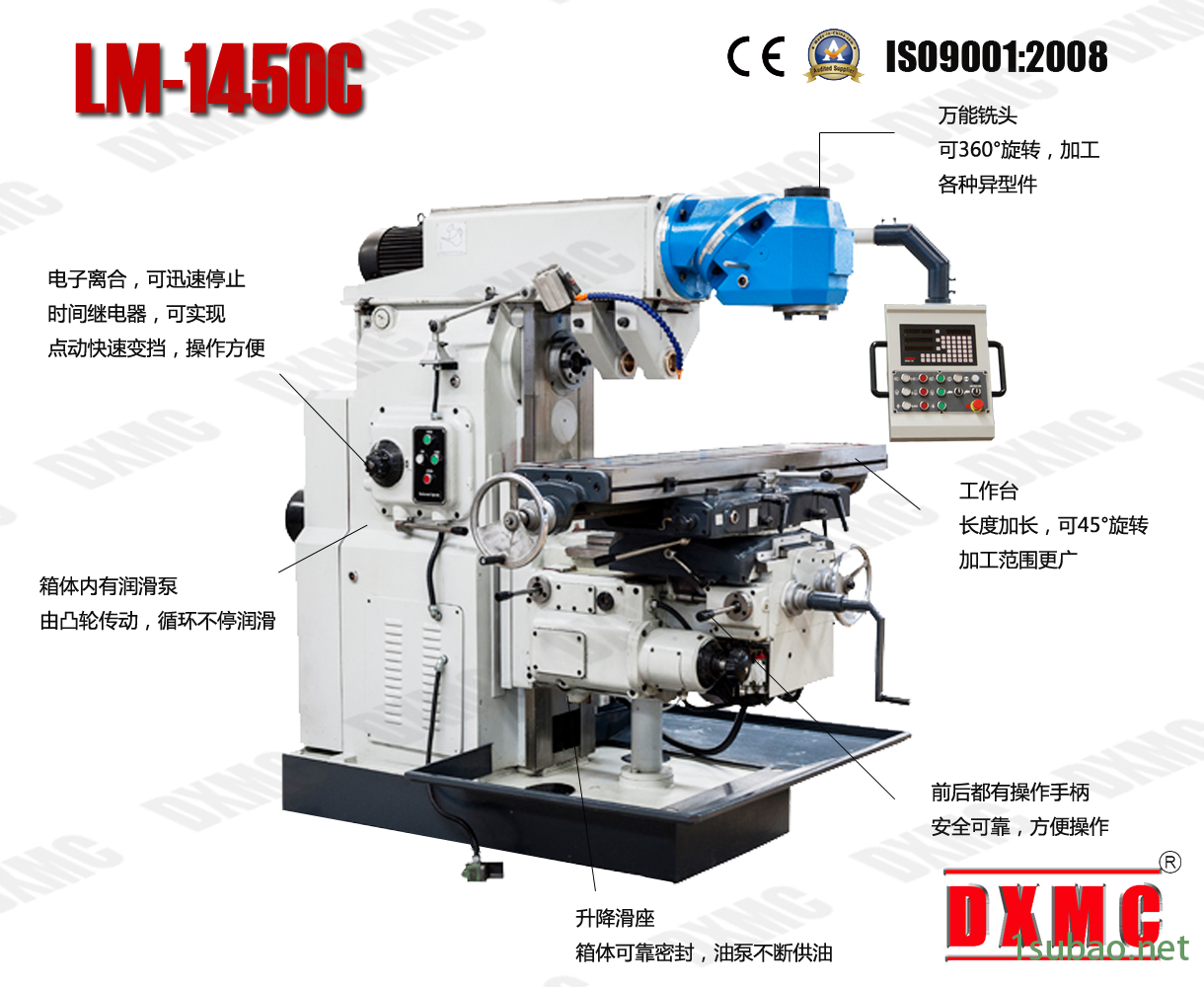

| LM-1450C *銑床參數表 | ||
| 工作臺面積 table size | mm | 1600X320 |
| T型槽數X寬度X間距Numbers、width&distance between T - slot | mm | 3X18X70 |
| zui大縱向行程 Max.longitudinal travel | mm | 800 |
| zui大橫向行程Max.cross travel | mm | 320 |
| zui大垂向行程 Max.vertical travel | mm | 350-400 |
| 滑枕行程 Travel of arm | mm | 730 |
| 立銑頭zui大回轉角度 Swivel angle of the vertical milling head | degree | ±360° |
| 工作臺zui大回轉角度Max.rotary angle of table | degree | ±45° |
| 立軸到立柱端面zui小距離Distance from vertical spindle to column surface (Min) | mm | 270 |
| 臥軸到滑枕結合面距離 Distabce from horizontal spindle to ram bottom | mm | 200 |
| 水平主軸錐度 Level spindle taper | taper | 7:24 NO50 |
| 銑頭主軸錐度Milling head spindle taper | taper | 7:24 NO50 |
| 水平主軸轉速級數 level spindle speed grade | steps | 18 |
| 水平主軸轉速范圍 level spindle speed range | rpm | 30-1500(50HZ) |
| 銑頭主軸轉速級數 Milling Head spindle speed garde | steps | 12 |
| 銑頭主軸轉速范圍 milling head spindle speed range | rpm | 51-1483(50HZ) |
| 工作臺進給級數Grade of the work-table feeds | steps | 18 |
| 縱橫向、垂向進給速度范圍Range of feed speeds longitudinal,cross,vertical | mm/min | 23.5-11808-394 |
| 縱橫向、垂向快速移動速度Speed of rapid travels longitudinal,cross,vertical | mm/min | 2300/ 770 |
| 銑頭主軸傳動電機 Milling head spindle drive motor | kw | 4 |
| 水平主軸傳動電機level spindle drive motor | kw | 7.5 |
| 進給電機功率Feed motor | kw | 1.5 |
| 冷卻泵功率 Coolant pump | w | 125 |
| 機床凈重 Net weight /Gross weight | kg | 3500/3700 |
| 機床外型尺寸（長X寬X高）Overall dimensions(L×W×H) | mm | 2300X2030X2000 |
滕州市三重機械制造有限公司，專業生產各種機床，鉆銑床等
：
